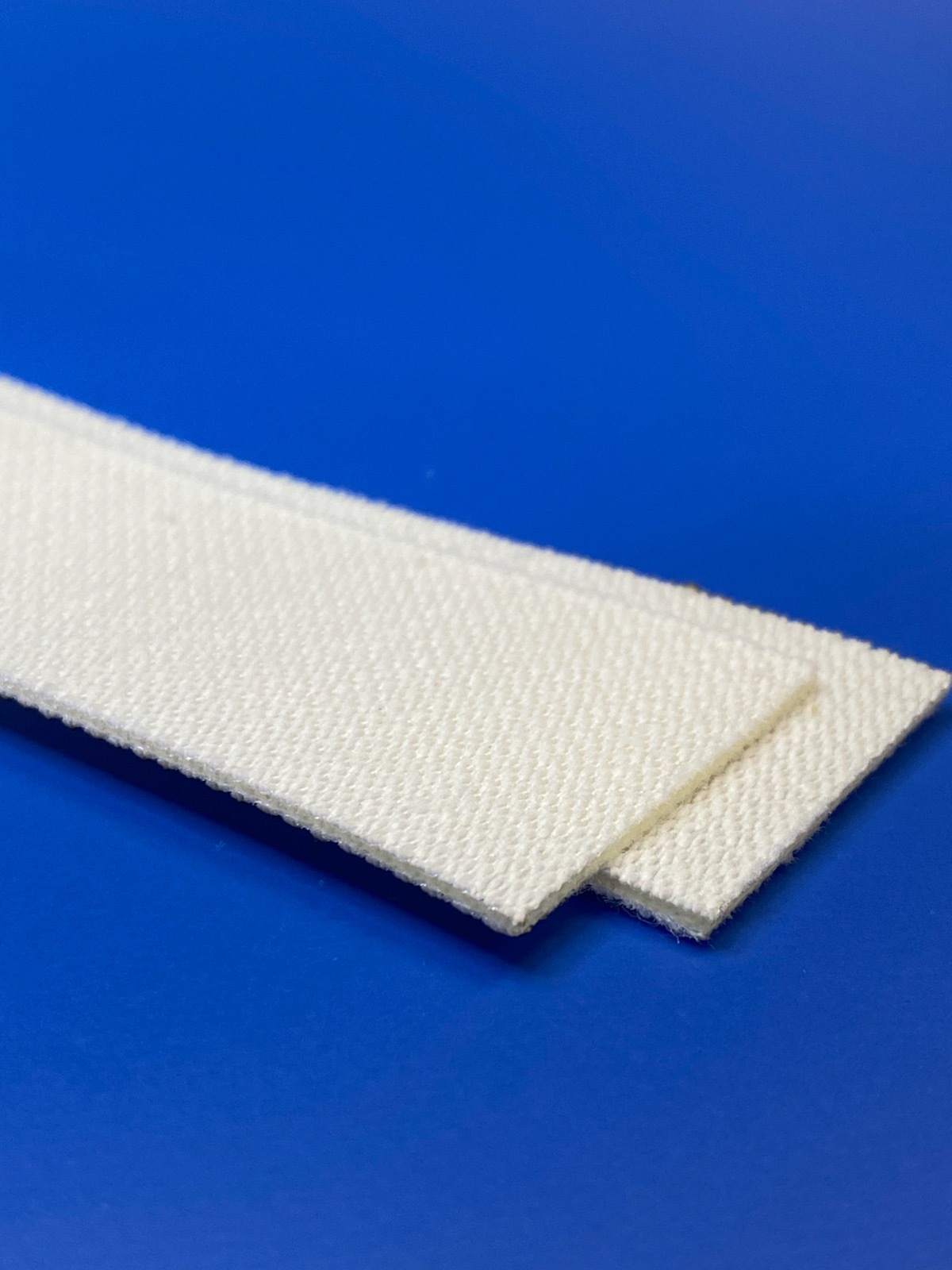

10FF Cotton

STRUCTURE
Total thickness		1.4mm
No. of plies		2
Fabric		Cotton
Weft		Flexible
Weight		1.10kg/m2
Constant temp.		-15°C to +90° C
Intermittent temp.		-25°C to +110° C

1. Top cover
Top cover thickness		0.0mm
Material		Cotton
Colour		Natural
Surface		Cotton
Hardness		0 shore A

2. Internal cover
Material		PU

3. Bottom cover
Material		Cotton
Colour		Natural
Surface		Cotton

TENSIONS
Working load 1% elongation		6N/mm
Breaking load		110N/mm

MIN. DRUM DIAMETER
Flexing		10mm
Back Flexing		10mm

JOIN TYPE
G00SS, UCM36SS, 25LL, Finger Splice

PROFILES APPLICATION
Profile on top Cover		Yes
Profile on bottom cover		Yes
Runner Sidewalls		No

SPECIAL CHARACTERISTICS
Animal Oil & Grease Res		Yes
Vegetable Oil & Grease Res.		Yes
Flame retardant		No
FDA Approved		Yes
EU Approved		Yes
ATEX Approved		No
Low Friction		Yes

SUPPORT SURFACE
Slider bed		Yes
Rollers		Yes
Troughed Application		Yes

COEFFICIENT OF FRICTION
Steel driving pulley		0.21
Stainless slider bed		0.21
Plastic slider bed		0.27



The user is responsible for proper selection and use of the product taking into consideration its commercial and
industrial needs. Values shown are typical and are subject to change without notice. Specifications are subject to
change without notice. Weight tolerance g/m2 + or – 5% variation.
