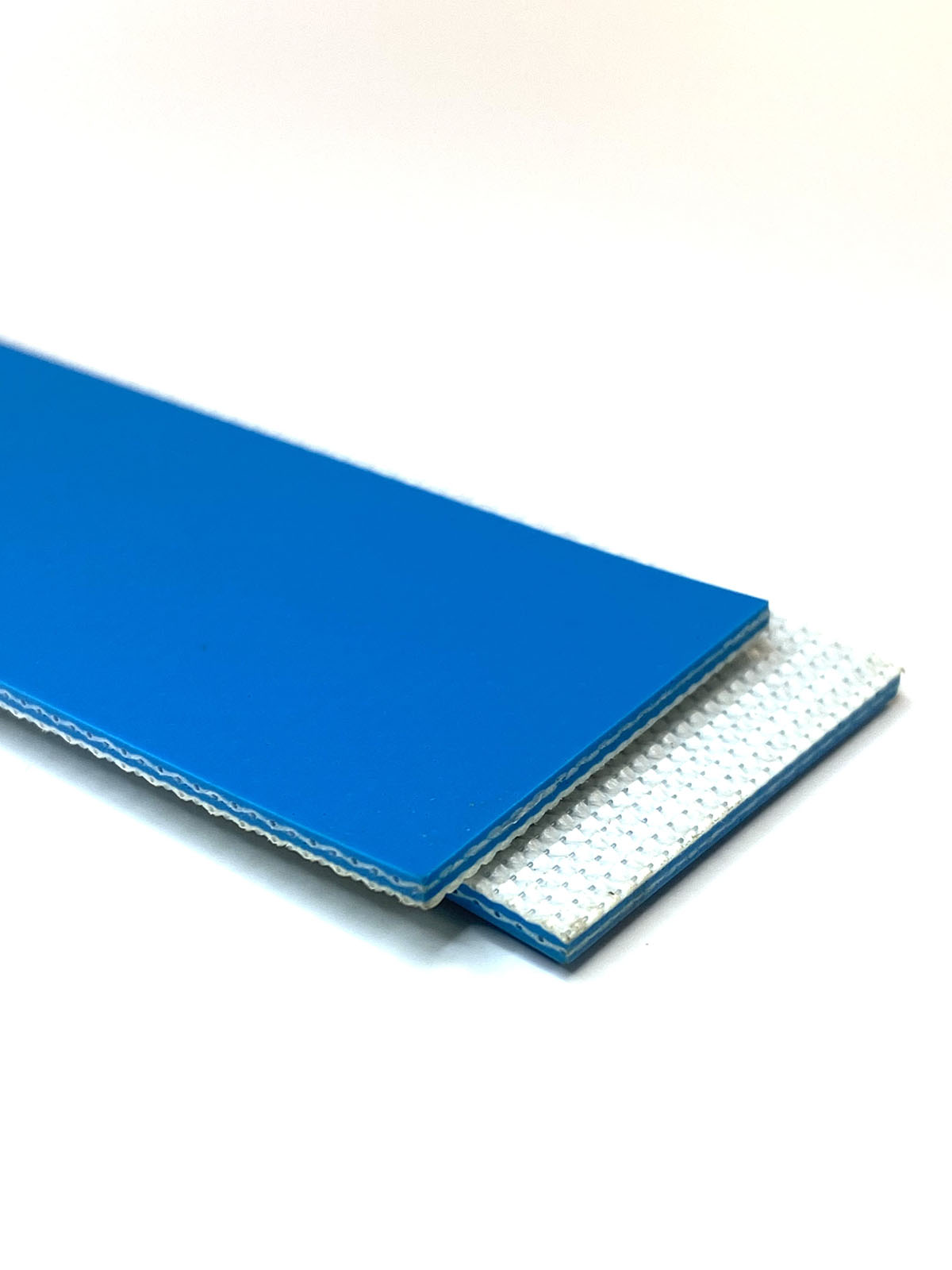

2CFM (Blue)
| STRUCTURE | |||
| Total thickness | 2.5mm | ||
| No. of plies | 2 | ||
| Fabric | Polyester | ||
| Weft | Rigid | ||
| Weight | 2.8kg/m2 | ||
| Working Temp. min. | -5°C | ||
| Working Temp. max. | +80° C |
| 1. Top cover | |||
| Top cover thickness | 0.7mm | ||
| Material | PVC | ||
| Colour | Blue | ||
| Surface | Smooth | ||
| Hardness | 70 shore A |
| 2. Internal cover | |||
| Material | PVC |
| 3. Bottom cover | |||
| Material | Polyester | ||
| Colour | White/Natural | ||
| Surface | Bare Fabric |
| TENSIONS | |||
| Working load 1% elongation | 8N/mm | ||
| Breaking load | 12N/mm |
| MIN. DRUM DIAMETER | |||
| Flexing | 50mm | ||
| Back Flexing | 60mm |
| JOIN TYPE | |||
| A40LLSS, RS62SS, Finger O/lap Splice |
| PROFILES APPLICATION | |||
| Profile on top Cover | Yes | ||
| Profile on bottom cover | Yes | ||
| Runner Sidewalls | Yes |
| SPECIAL CHARACTERISTICS | |||
| Veg. & Minerals Oils Res. | Yes | ||
| Animal Fats Res. | Yes | ||
| Abrasion resistance | Good | ||
| Flame retardant | No | ||
| FDA Approved | Yes | ||
| EU Approved | Yes |
| SUPPORT SURFACE | |||
| Slider bed | Yes | ||
| Rollers | Yes | ||
| Troughed Application | No |
| COEFFICIENT OF FRICTION | |||
| Steel driving pulley | 0.22 | ||
| Lagged driving pulley | 0.28 |
The user is responsible for proper selection and use of the product taking into consideration its commercial and
industrial needs. Values shown are typical and are subject to change without notice. Specifications are subject to
change without notice. Weight tolerance g/m2 + or – 5% variation.
For more information, please call 03 9462 4544 or email us on sales@fdoconnor.com.au
