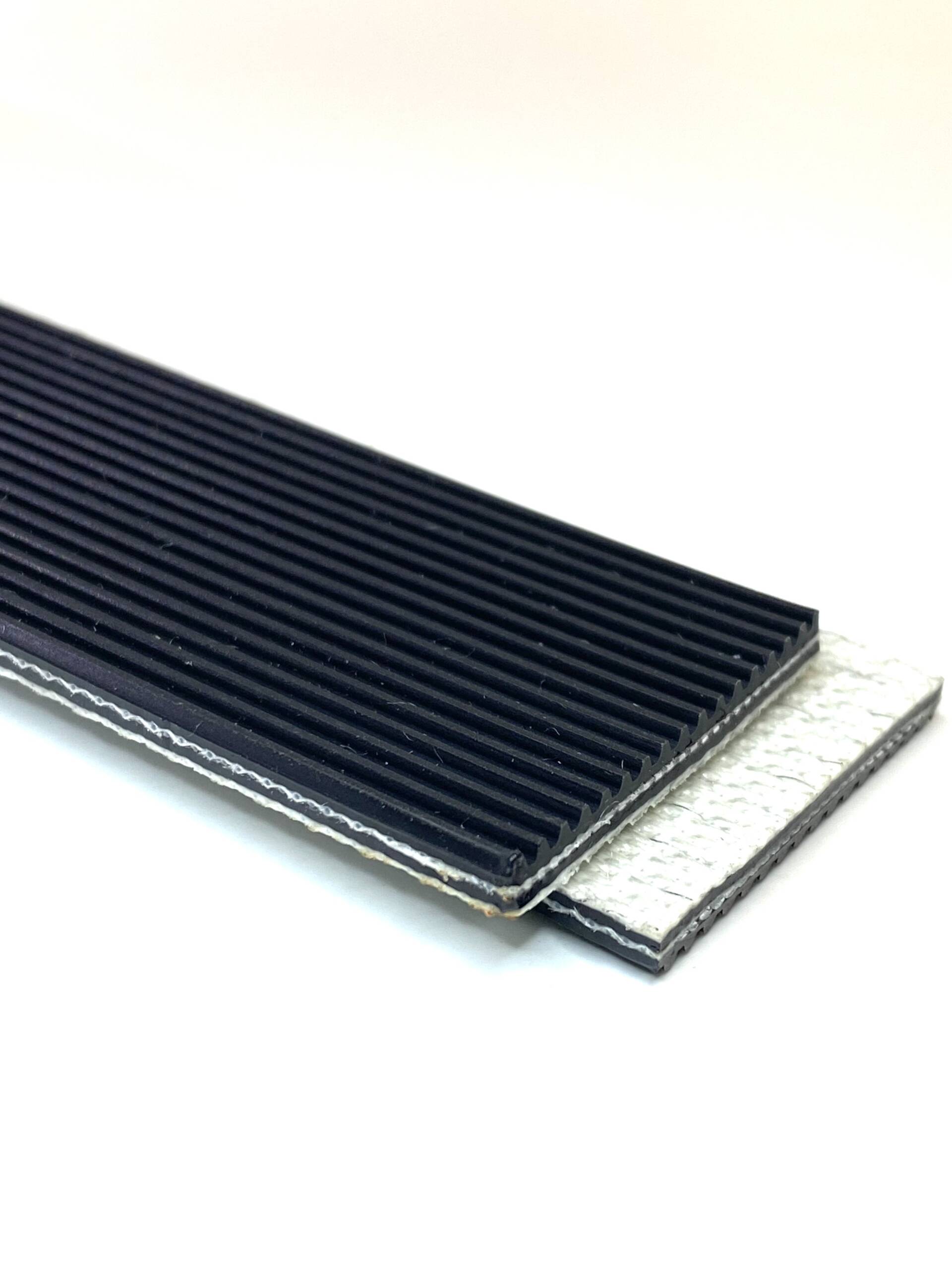

2LGM (Black)

STRUCTURE
Total thickness		2.8mm
No. of plies		2
Fabric		Polyester
Weft		Rigid
Weight		3.3kg/m2
Working Temp. min.		-10°C
Working Temp. max.		+80° C

1. Top cover
Top cover thickness		1.0mm
Material		PVC
Colour		Black
Surface		Longitudinal
Hardness		55 shore A

2. Internal cover
Material		PVC

3. Bottom cover
Material		Polyester
Colour		White/Natural
Surface		Bare Fabric

TENSIONS
Working load 1% elongation		8N/mm
Max. Working Tension		12N/mm

MIN. DRUM DIAMETER
Flexing4		0mm
Back Flexing6		0mm

JOIN TYPE
A40LLSS, RS62SS, Finger Splice

PROFILES APPLICATION
Profile on top Cover		No
Profile on bottom cover		Yes
Runner Sidewalls		No

SPECIAL CHARACTERISTICS
General Purpose		Yes
Incline/decline suitable		Yes
Flame retardant		No
FDA Approved		No
EU Approved		Yes
Antistatic		Yes

SUPPORT SURFACE
Slider bed		Yes
Rollers		Yes
Troughed Application		No

COEFFICIENT OF FRICTION
Steel driving pulley		0.31
Plastic slider bed		0.25



The user is responsible for proper selection and use of the product taking into consideration its commercial and
industrial needs. Values shown are typical and are subject to change without notice. Specifications are subject to
change without notice. Weight tolerance g/m2 + or – 5% variation.
