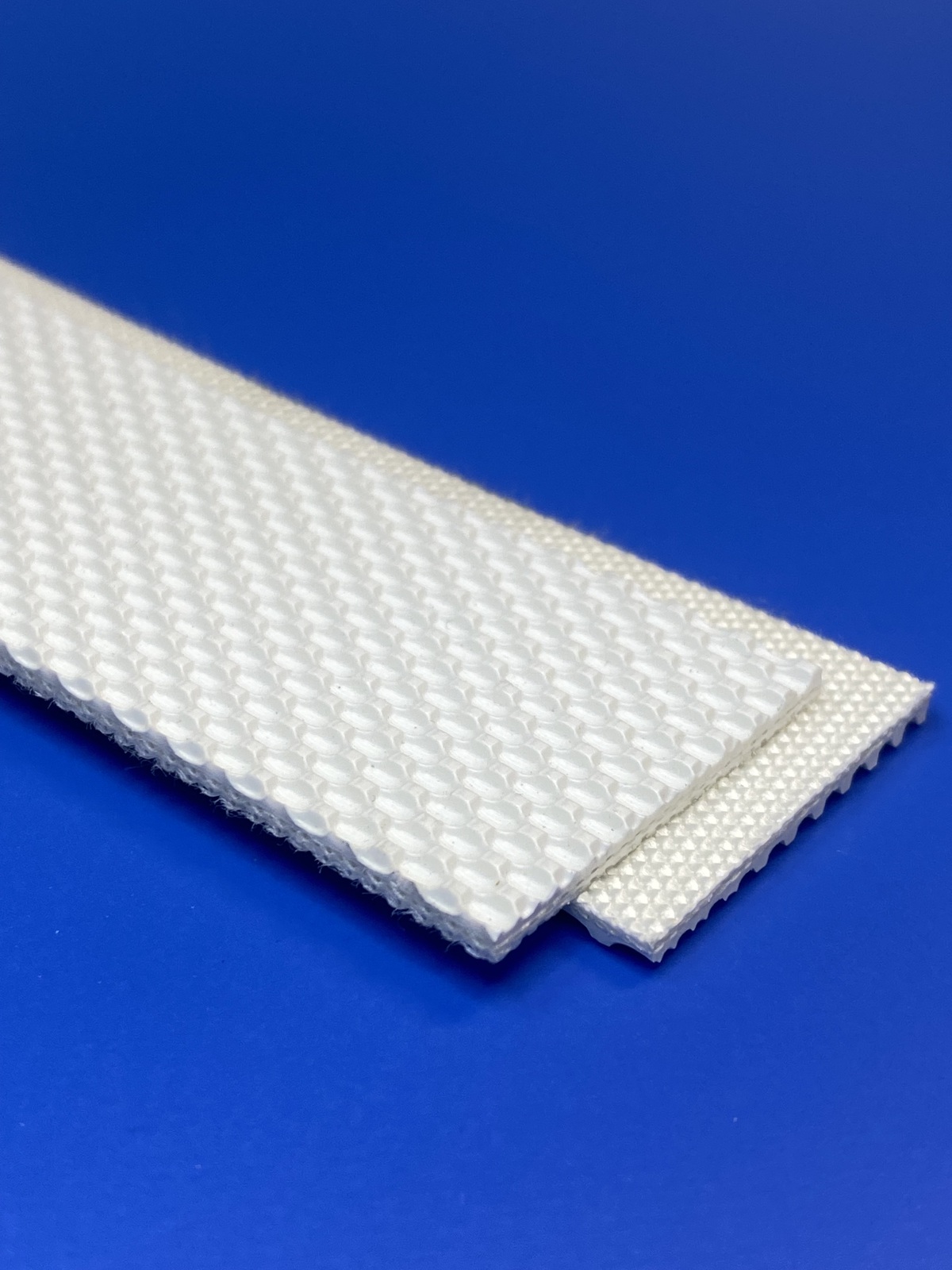

2MRT White

STRUCTURE
Total thickness		2.5mm
No. of plies		2
Fabric		Polyester
Weft		Rigid
Weight		2.1kg/m2
Temperature Range		-20°C to + 80° C

1. Top cover
Top cover thickness		0.50mm
Material		Polyurethane
Colour		White
Surface		Neg. Drop (Mini RT)
Hardness		87 shore A

2. Internal cover
Material		Polyurethane

3. Bottom cover
Material		Polyurethane
Colour		White/Natural
Surface		Polyester IMPGR

TENSIONS
Working load 1% elongation		7N/mm
Breaking load		12N/mm

MIN. DRUM DIAMETER
Flexing		15mm
Back Flexing		50mm

JOIN TYPE
G00SS, A40LLSS, Finger Splice

PROFILES APPLICATION
Profile on top Cover		No
Profile on bottom cover		Yes
Corrugated Sidewalls		No

SPECIAL CHARACTERISTICS
Minerals, Oils & Fats Res.		Yes
Abrasion resistance		Yes
Flame retardant		Yes
FDA Approved		Yes
EU Approved		Yes
ATEX Approved		No
Antistatic		No

SUPPORT SURFACE
Slider bed		Yes
Rollers		Yes
Troughed Application		No

COEFFICIENT OF FRICTION
Steel driving pulley		0.15
Lagged driving pulley		0.20



The user is responsible for proper selection and use of the product taking into consideration its commercial and
industrial needs. Values shown are typical and are subject to change without notice. Specifications are subject to
change without notice. Weight tolerance g/m2 + or – 5% variation.
