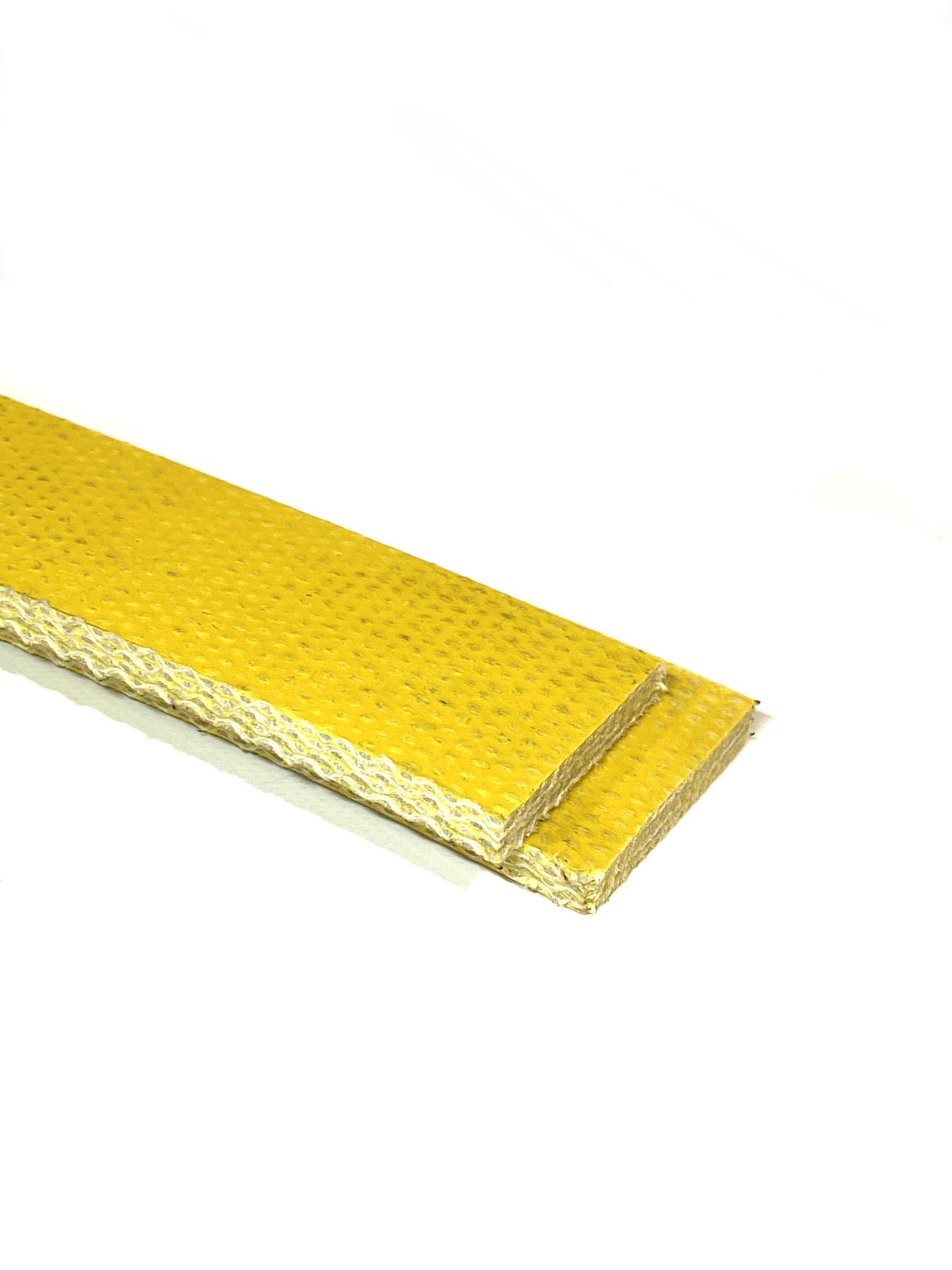

4PLY TRANS

Belt Type: 4PLY TRANS
Thickness (mm)		5
Weight (kg/m2)		5.4
Max Width (mm)		1200
Min Pulley diameter		100
Nosebar Diameter (mm)		N/A
Minimum back flex
Load for 1% elongation (N/mm)
Max working Tension
Op temp (min) deg	Op temp (max) deg	0	80
Conveying side material		COTTON
Conveying side colour		TAN
Underside Material		COTTON
Underside feature		RUBBER SKIM
Underside colour		TAN
Co- efficient of friction (u)		N/A
Applications		General Purpose, Agricultural.
Characteristics		Transmission.
Food approval		NO
Values shown are typical and are subject to change without notice. Before using, the user should determine the suitability of the product for its intended use and assumes all risk and liability in connection therewith. Specifications are subject to change without notice. Weight tolerance g/m2 or -5% variation, Teflon® content or -2% variation.

Category: Powerit Flat Transmission Drive Belts Product ID: 3717
