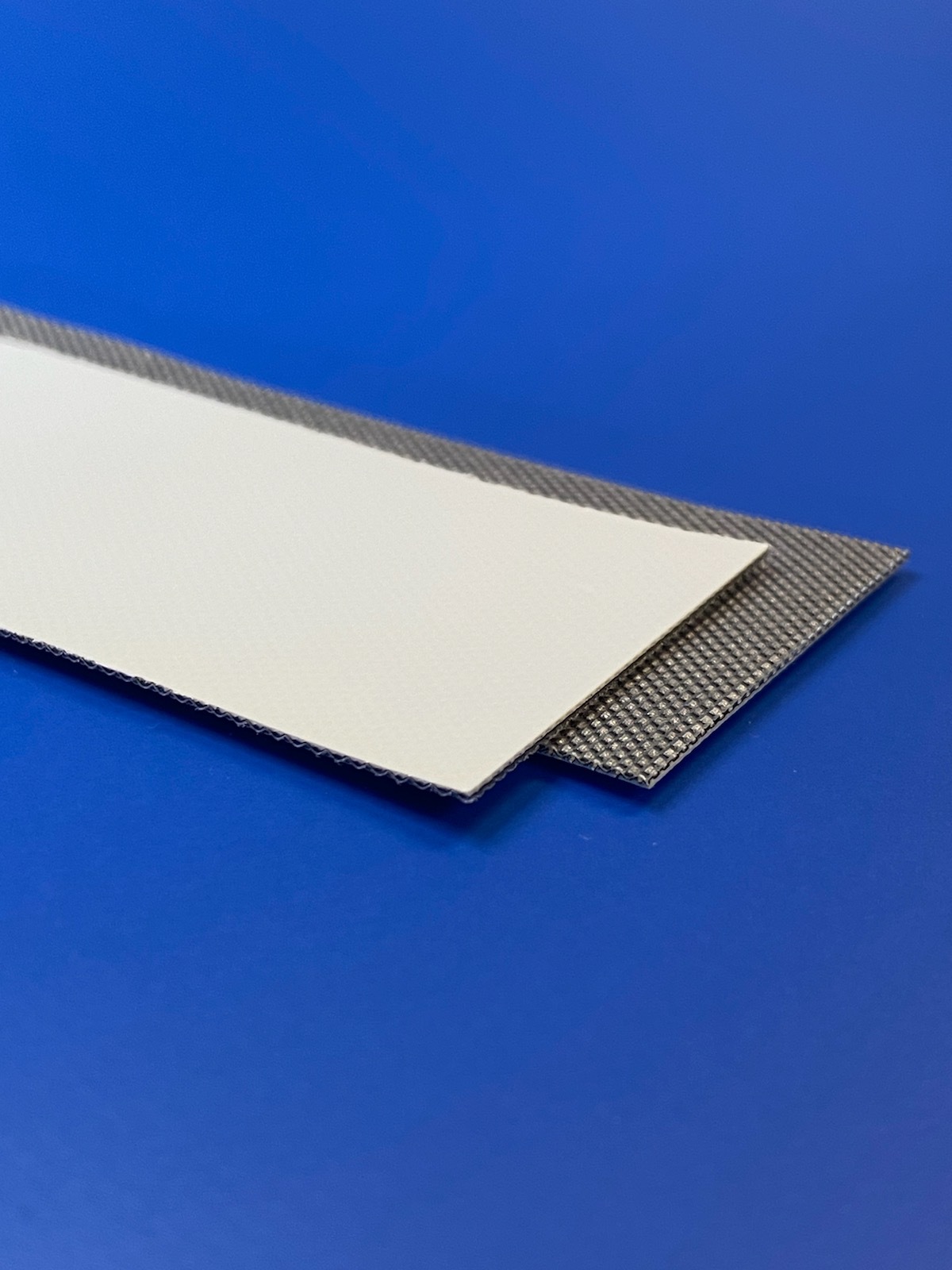

FAB-2E

STRUCTURE
Total thickness		0.7mm
No. of plies		2
Fabric		Polyester
Weft		Rigid
Weight		0.70kg/m2
Constant temp. min		-30°C
Constant temp. max		+80° C

1. Top cover
Top cover thickness		0.25mm
Material		Polyurethane
Colour		White
Surface		Matt

3. Bottom cover
Material		Polyester
Colour		Light Grey
Surface		Polyester IMPGR.

TENSIONS
Working load 1% elongation		3.2N/mm
Breaking load		8N/mm

MIN. DRUM DIAMETER
Flexing		15mm
Back Flexing		15mm

JOIN TYPE
Finger Splice

PROFILES APPLICATION
Profile on top Cover		No
Profile on bottom cover		No
Runner Sidewalls		No

SPECIAL CHARACTERISTICS
Minerals, Oils & Grease Res.		Yes
Flame retardant		No
FDA Approved		Yes
EU Approved		Yes
ATEX Approved		No
Antistatic		Yes

SUPPORT SURFACE
Slider bed		Yes
Rollers		Yes
Troughed Application		No

COEFFICIENT OF FRICTION
Steel slider bed		0.15
Steel driving pulley		0.15
Lagged driving pulley		0.35



The user is responsible for proper selection and use of the product taking into consideration its commercial and
industrial needs. Values shown are typical and are subject to change without notice. Specifications are subject to
change without notice. Weight tolerance g/m2 + or – 5% variation.
