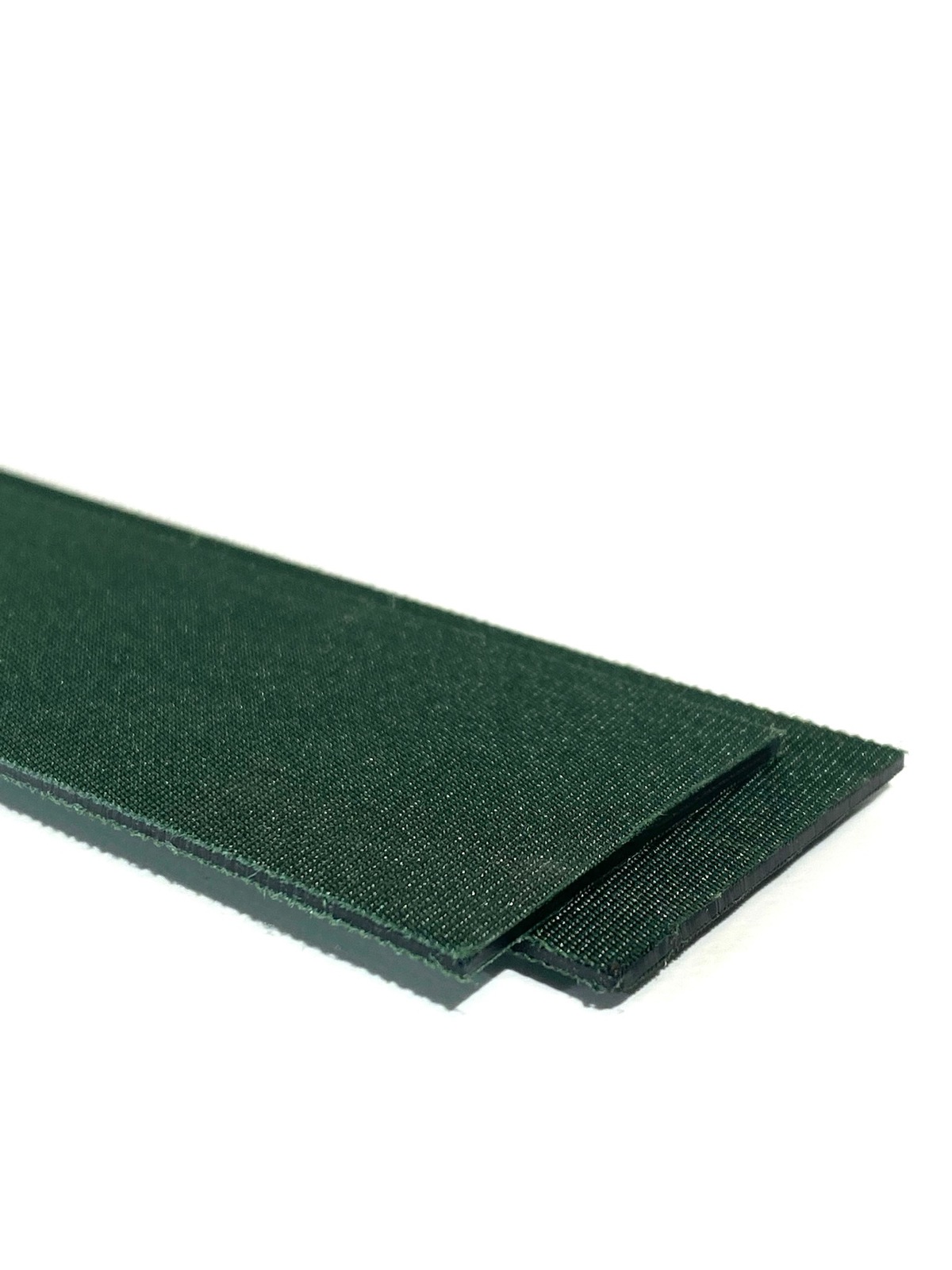

FNF-100
| STRUCTURE | |||
| Total thickness | 1.5mm | ||
| Fabric | Fabric | ||
| Weight | 1.5 kg/m2 | ||
| Temperature Min. | 0°C | ||
| Temperature Max. | 80°C |
| 1. Top cover | |||
| Material | Fabric | ||
| Colour | Green |
| 2. Internal cover | |||
| Material | Polyamide | ||
| Thickness | 0.8mm |
| 3. Bottom cover | |||
| Material | Fabric | ||
| Colour | Green |
| TENSIONS | |||
| Working load 1% elongation | 8.0 N/mm |
| MIN. DRUM DIAMETER | |||
| Flexing | 60mm | ||
| Back Flexing | 60mm |
| JOIN TYPE | |||
| Skive Join |
| COEFFICIENT OF FRICTION | |||
| 0.15 |
| FOOD APPROVAL | |||
| No |
| CHARACTERISTICS | |||
| High power efficiency. Printing industry. sheeters, textile industry. |
