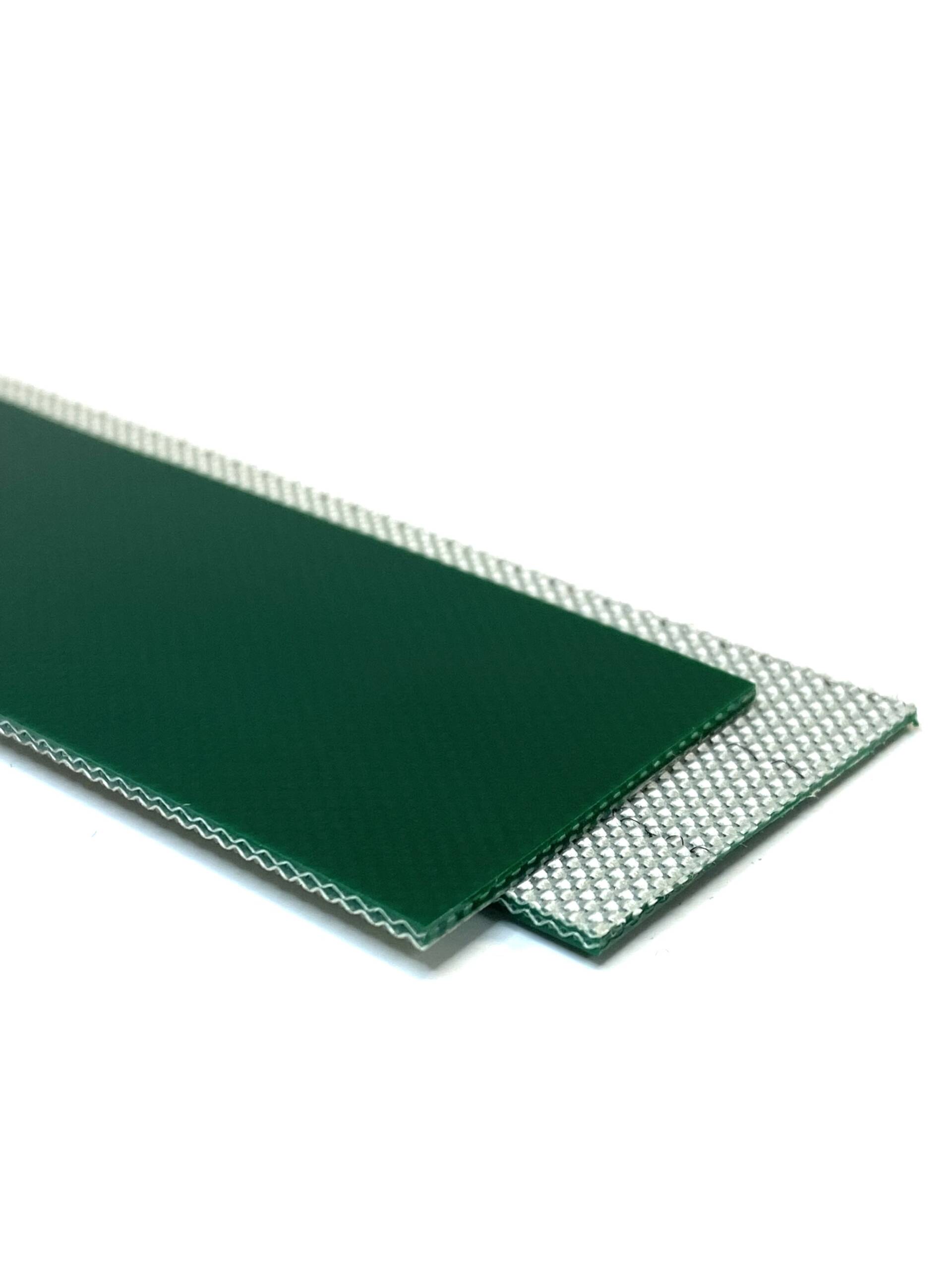

UU140 GREEN MATT
| STRUCTURE | |||
| Total thickness | 1.3mm | ||
| No. of plies | 2 | ||
| Fabric | IMPGR. Fabric | ||
| Weft | Rigid | ||
| Weight | 1.4kg/m2 | ||
| Constant temp. min | -30°C | ||
| Constant temp. max. | +80° C |
| 1. Top cover | |||
| Top cover thickness | 0.25mm | ||
| Material | Polyurethane | ||
| Colour | Green | ||
| Surface | Matt | ||
| Hardness | 90 shore A |
| 2. Internal cover | |||
| Material | Polyurethane |
| 3. Bottom cover | |||
| Material | Polyurethane | ||
| Colour | White/Natural | ||
| Surface | Polyester IMPGR. |
| TENSIONS | |||
| Working load 1% elongation | 8N/mm | ||
| Breaking load | 12N/mm |
| MIN. DRUM DIAMETER | |||
| Flexing | 20mm | ||
| Back Flexing | 40mm |
| JOIN TYPE | |||
| G00SS, Finger Splice |
| PROFILES APPLICATION | |||
| Profile on top Cover | Yes | ||
| Profile on bottom cover | Yes | ||
| Runner Sidewalls | No |
| SPECIAL CHARACTERISTICS | |||
| Minerals, Oils & Fats Res. | Yes | ||
| Abrasion resistance | Yes | ||
| Flame retardant | No | ||
| FDA Approved | Yes | ||
| EU Approved | Yes | ||
| ATEX Approved | No | ||
| Antistatic | Yes |
| SUPPORT SURFACE | |||
| Slider bed | Yes | ||
| Rollers | Yes | ||
| Troughed Application | No | ||
| Sliding on return side | No |
| COEFFICIENT OF FRICTION | |||
| Steel driving pulley | 0.20 | ||
| Lagged driving pulley | 0.20 |
