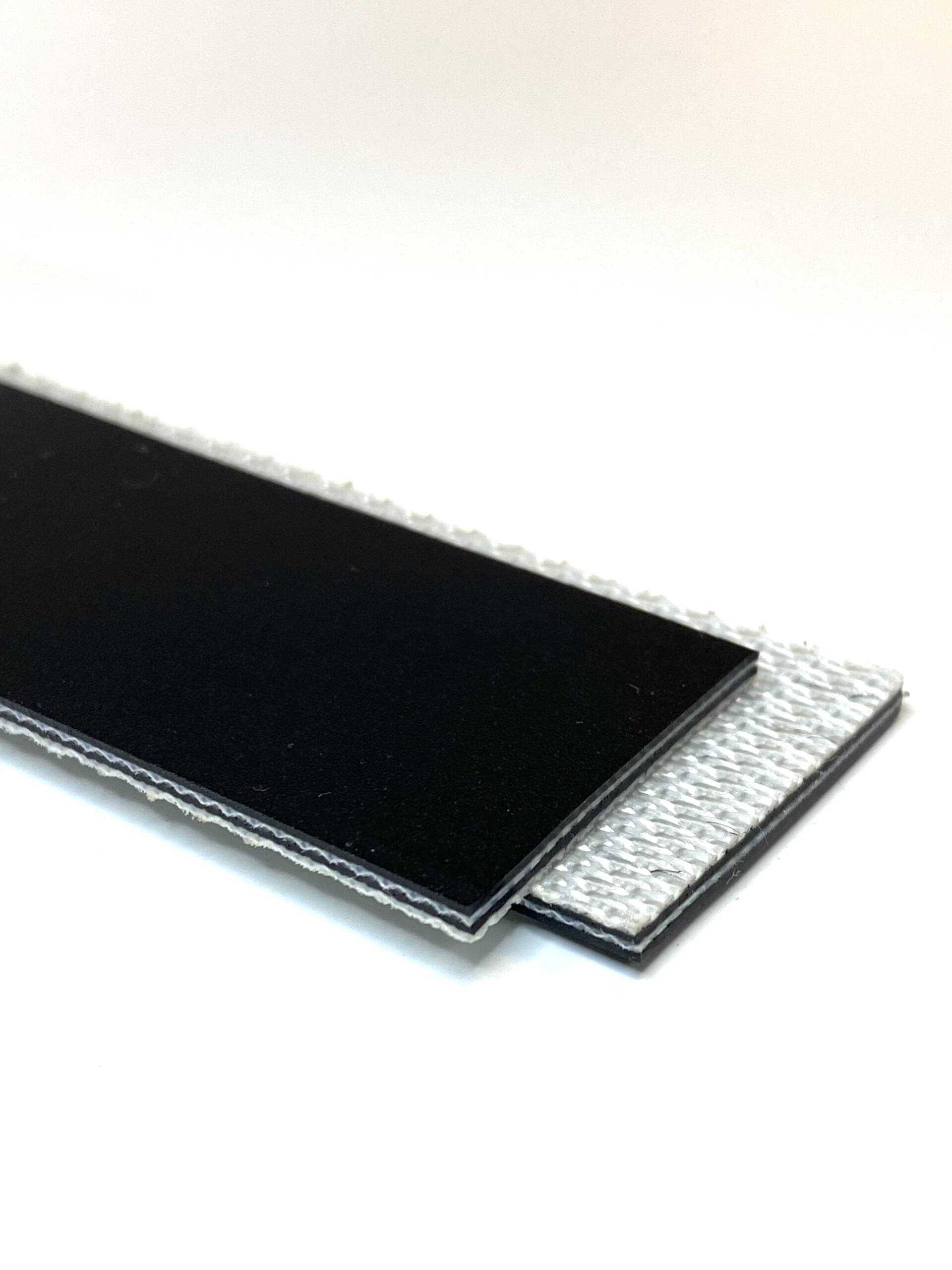

2CFM (Black)

STRUCTURE
Total thickness		2.0mm
No. of plies		2
Fabric		Polyester
Weft		Rigid
Weight		2.4kg/m2
Working Temp. min.		-10°C
Working Temp. max.		+80° C

1. Top cover
Top cover thickness		0.5mm
Material		PVC
Colour		Black
Surface		Matt
Hardness		80 shore A

2. Internal cover
Material		PVC

3. Bottom cover
Material		Polyester
Colour		White/Natural
Surface		Bare Fabric

TENSIONS
Working load 1% elongation		8N/mm
Max. Working Tension		12N/mm

MIN. DRUM DIAMETER
Flexing		40mm
Back Flexing		60mm

JOIN TYPE
A40LLSS, RS62SS, Finger Splice

PROFILES APPLICATION
Profile on top Cover		Yes
Profile on bottom cover		Yes
Runner Sidewalls		Yes

SPECIAL CHARACTERISTICS
General Purpose		Yes
Abrasion resistance		Yes
Flame retardant		No
FDA Approved		No
EU Approved		No
Antistatic		Yes

SUPPORT SURFACE
Slider bed		Yes
Rollers		Yes
Troughed Application		No

COEFFICIENT OF FRICTION
Steel driving pulley		0.31
Plastic slider bed		0.25



The user is responsible for proper selection and use of the product taking into consideration its commercial and
industrial needs. Values shown are typical and are subject to change without notice. Specifications are subject to
change without notice. Weight tolerance g/m2 + or – 5% variation.
