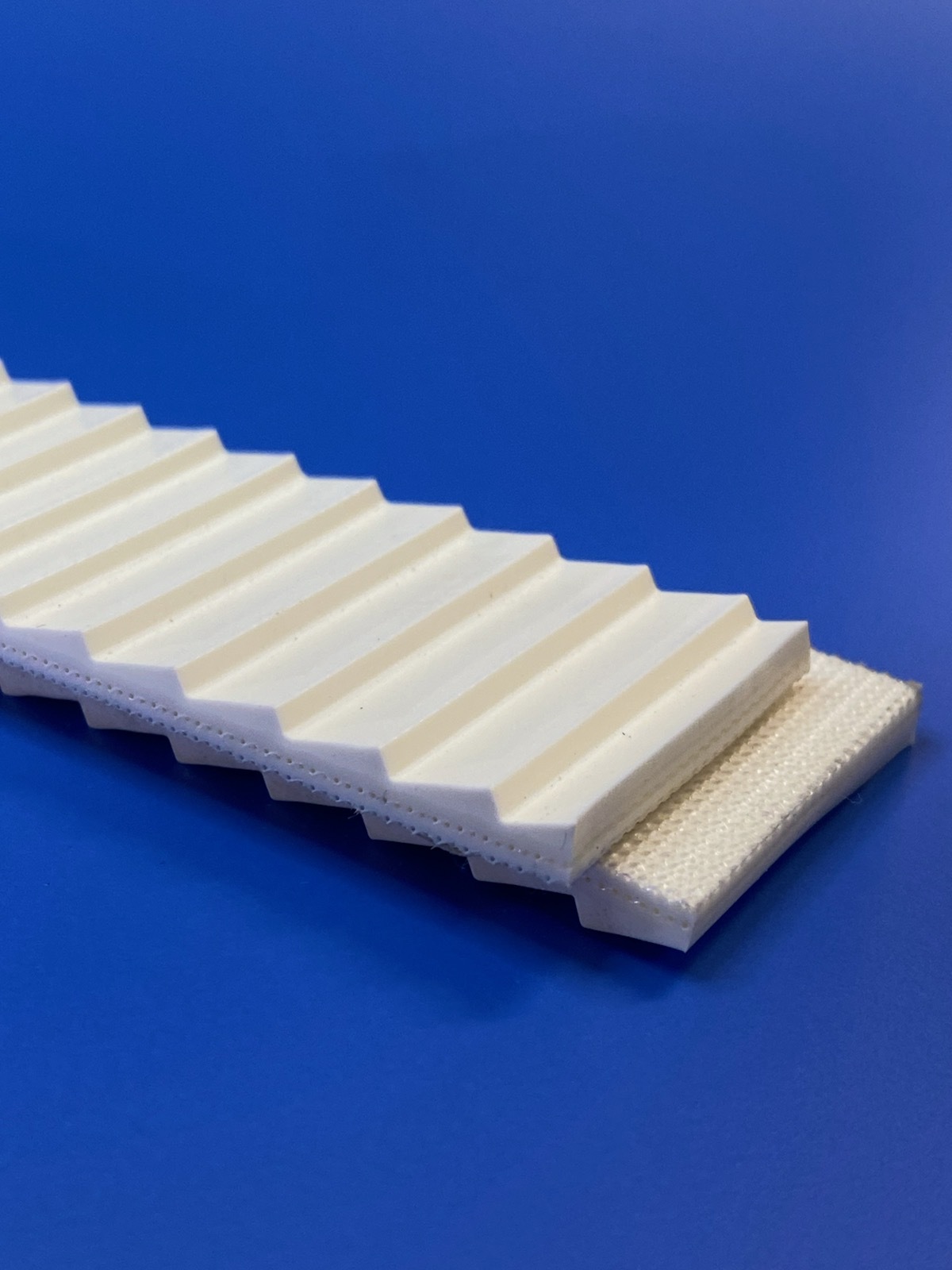

2STM (White)

STRUCTURE
Total thickness		5.3mm
No. of plies		2
Fabric		Polyester
Weft		Rigid
Weight		5.3kg/m2
Working Temp. min.		-5°C
Working Temp. max.		+90° C

1. Top cover
Top cover thickness		2.0mm
Material		PVC
Colour		White
Surface		Sawtooth
Hardness

2. Internal cover
Material		PVC

3. Bottom cover
Material		Fabric
Colour		Natural

TENSIONS
Working load 1% elongation		10N/mm
Breaking load		20N/mm

MIN. DRUM DIAMETER
Flexing		70mm
Back Flexing		90mm

JOIN TYPE
RS125SS, Finger O/lap Splice

PROFILES APPLICATION
Profile on top Cover		No
Profile on bottom cover		Yes
Runner Sidewalls		No

SPECIAL CHARACTERISTICS
Veg. & Minerals Oils Res.		Yes
Animal Fats Res.		Yes
Flame retardant		No
FDA Approved		Yes
EU Approved		Yes

SUPPORT SURFACE
Slider bed		Yes
Rollers		Yes
Troughed Application		No

COEFFICIENT OF FRICTION
Steel driving pulley		0.20



The user is responsible for proper selection and use of the product taking into consideration its commercial and
industrial needs. Values shown are typical and are subject to change without notice. Specifications are subject to
change without notice. Weight tolerance g/m2 + or – 5% variation.
