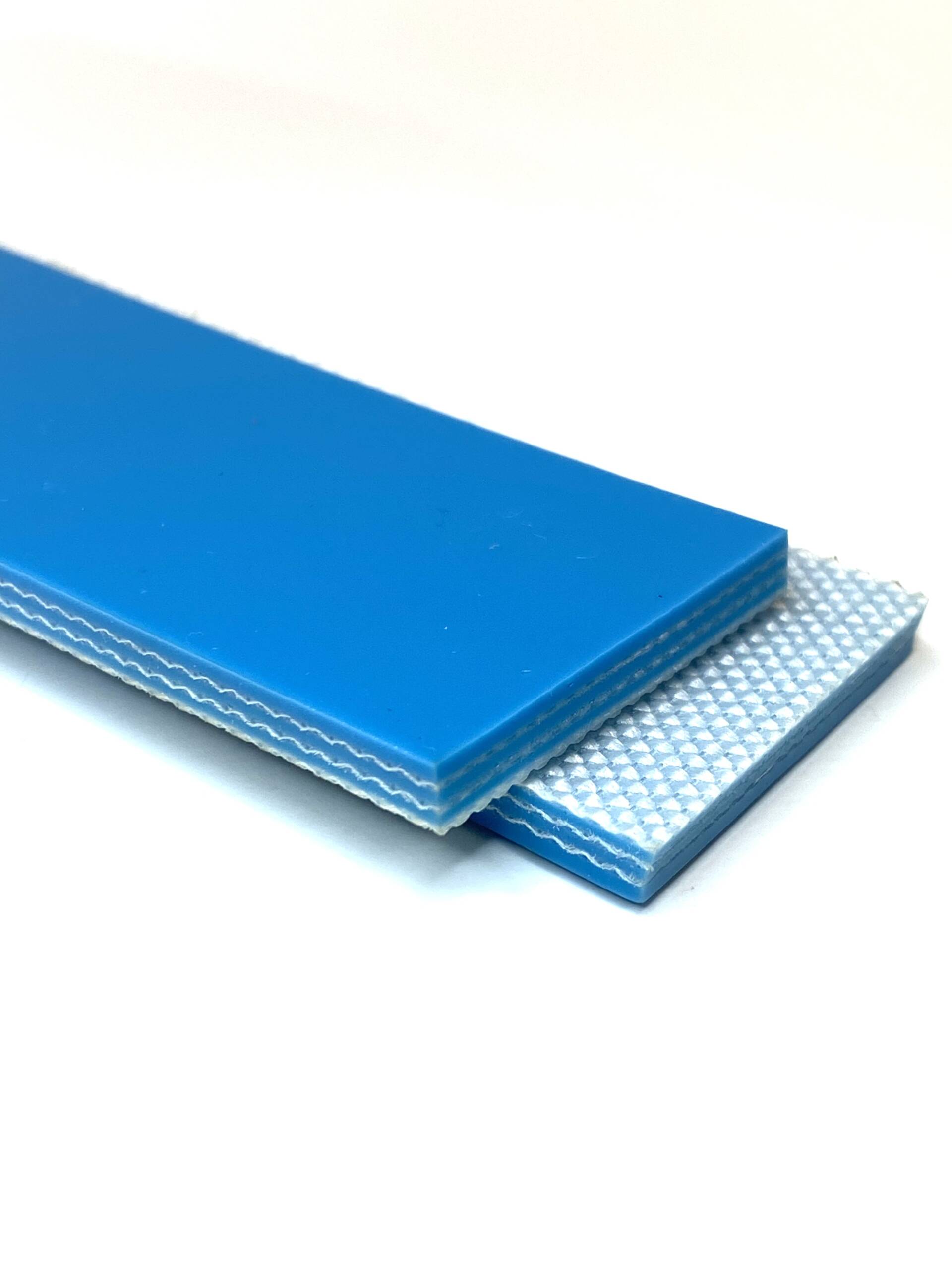

3CFM (Blue)

STRUCTURE
Total thickness 4.2mm
No. of plies 2
Fabric Polyester
Weft Rigid
Weight 5.3kg/m2
Working Temp. min. -5°C
Working Temp. max. +80° C
1. Top cover
Top cover thickness 1.1mm
Material PVC
Colour Blue
Surface Smooth
Hardness 70 shore A
2. Internal cover
Material PVC
3. Bottom cover
Material Polyester
Colour White/Natural
Surface Bare Fabric
TENSIONS
Working load 1% elongation 18N/mm
Breaking load 20N/mm
MIN. DRUM DIAMETER
Flexing 120mm
Back Flexing 150mm
JOIN TYPE
RS125SS, Finger O/lap Splice
PROFILES APPLICATION
Profile on top Cover Yes
Profile on bottom cover Yes
Runner Sidewalls Yes
SPECIAL CHARACTERISTICS
Veg. & Minerals Oils Res. Yes
Animal Fats Res. Yes
Flame retardant No
FDA Approved Yes
EU Approved Yes
SUPPORT SURFACE
Slider bed Yes
Rollers Yes
Troughed Application No
COEFFICIENT OF FRICTION
Steel driving pulley 0.22
Lagged driving pulley 0.28



The user is responsible for proper selection and use of the product taking into consideration its commercial and
industrial needs. Values shown are typical and are subject to change without notice. Specifications are subject to
change without notice. Weight tolerance g/m2 + or – 5% variation.
For more information, please call 03 9462 4544 or email us on sales@fdoconnor.com.au
