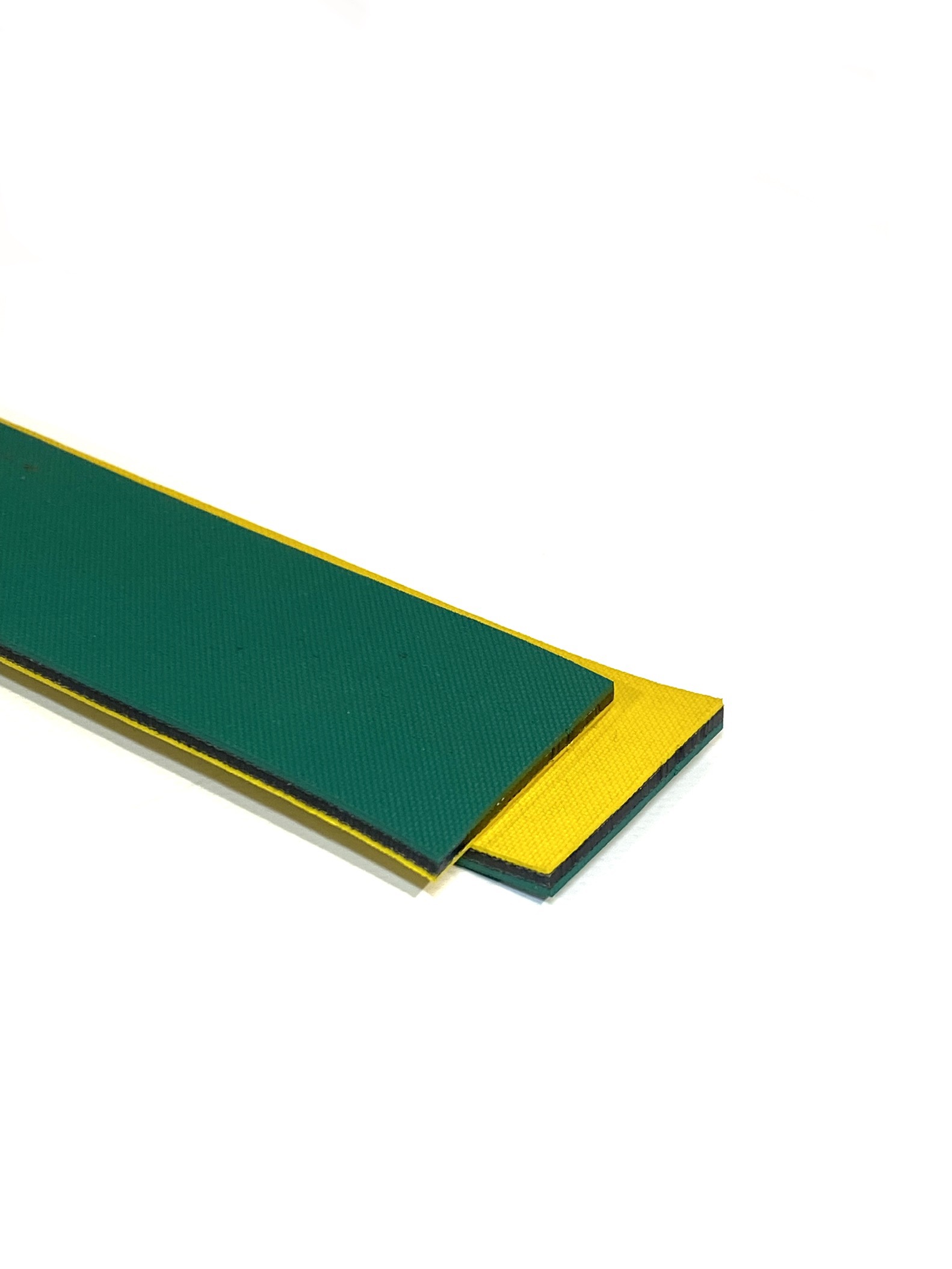

GG20

STRUCTURE
Total thickness 2.0mm
Fabric NBR
Weight 2.2 kg/m2
Temperature Min. 0°C
Temperature Max. 80°C
1. Top cover
Material NBR
Colour Green
2. Internal cover
Material Polyamide
Thickness 0.75mm
3. Bottom cover
Material NBR
Colour Yellow
TENSIONS
Working load 1% elongation 8.5 N/mm
MIN. DRUM DIAMETER
Flexing 50mm
Back Flexing N/A
JOIN TYPE
Skive Join
COEFFICIENT OF FRICTION
0.7
FOOD APPROVAL
No
CHARACTERISTICS
Power transmission belting
Categories: , Product ID: 4166

Description

Download the PDF here.
