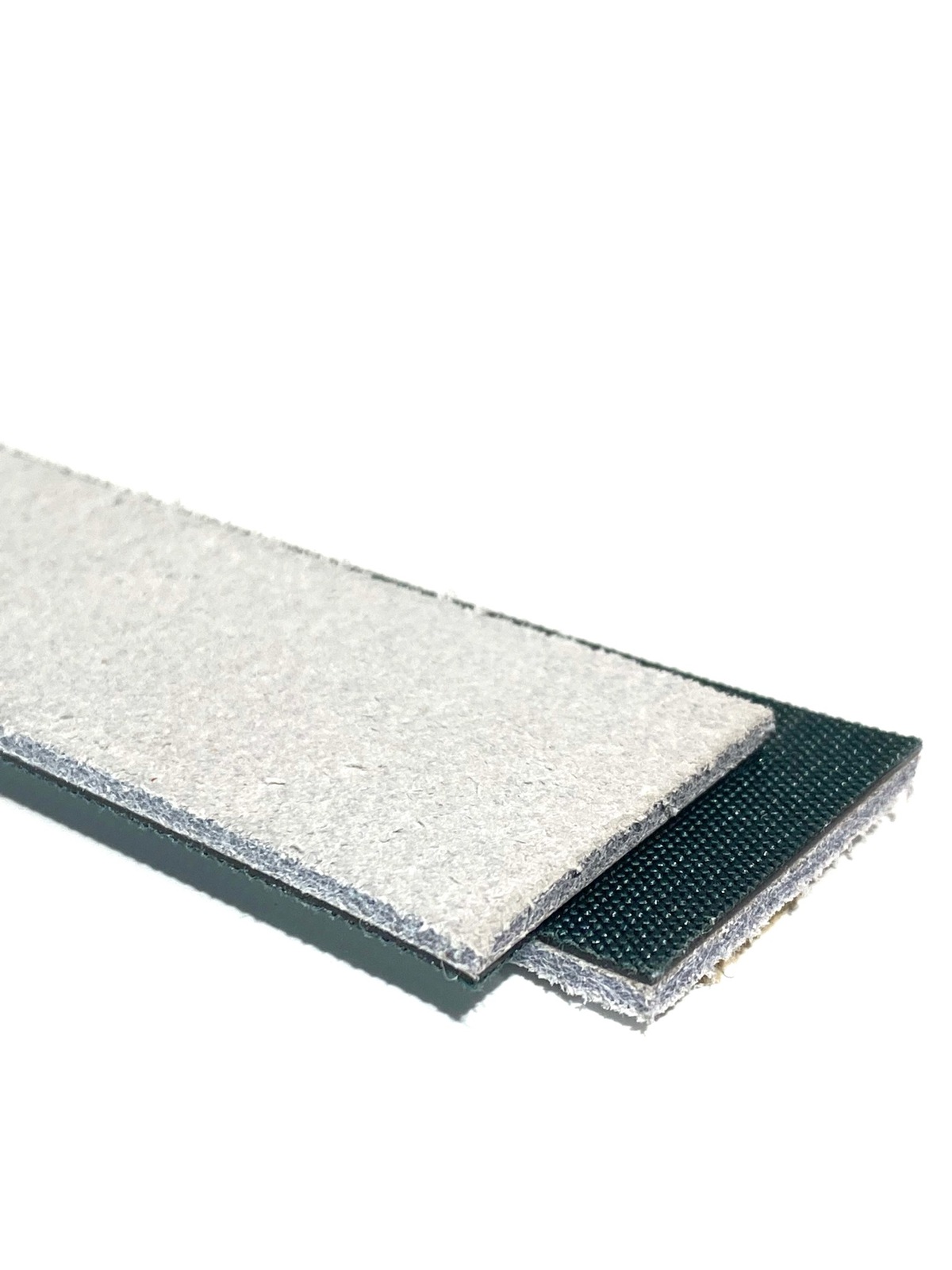

LNF100

STRUCTURE
Total thickness 3.10mm
Fabric Leather/Fabric
Weight 3.2 kg/m2
Temperature Min. -30°C
Temperature Max. 80°C
1. Top cover
Top cover thickness 2.0mm
Material Leather Chrome
Colour Grey
2. Internal cover
Material Polyamide
Thickness 0.75mm
3. Bottom cover
Material Fabric
Colour Green
Thickness 0.35mm
TENSIONS
Working load 1% elongation 8.5 N/mm
MIN. DRUM DIAMETER
Flexing 60mm
Back Flexing N/A
JOIN TYPE
Skive Join
COEFFICIENT OF FRICTION
0.5
FOOD APPROVAL
No
CHARACTERISTICS
High co-efficient of friction, allows drive services to
enable very high horse powers to be transmitted.
Categories: , Product ID: 4180

Description

Download the PDF here.
