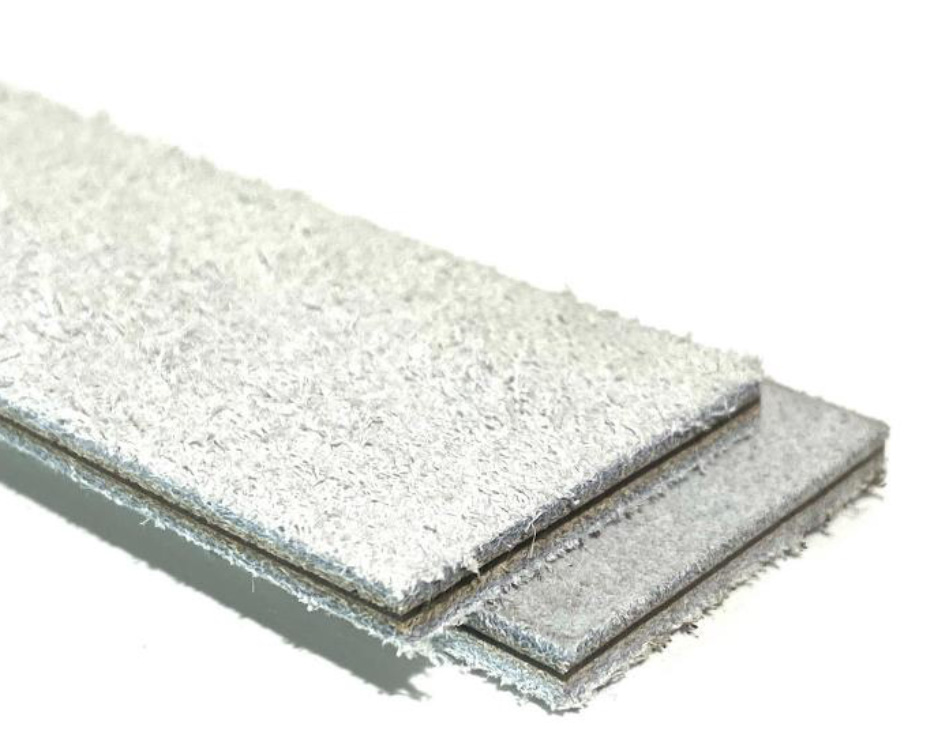

LNL200
| STRUCTURE | |||
| Total thickness | 5.70mm | ||
| Fabric | Leather | ||
| Weight | 6.1 kg/m2 | ||
| Temperature Min. | -30°C | ||
| Temperature Max. | 80°C |
| 1. Top cover | |||
| Top cover thickness | 2.1mm | ||
| Material | Leather Chrome | ||
| Colour | Grey |
| 2. Internal cover | |||
| Material | Polyamide | ||
| Thickness | 1.5mm |
| 3. Bottom cover | |||
| Bottom cover thickness | 2.1mm | ||
| Material | Leather Chrome | ||
| Colour | Grey |
| TENSIONS | |||
| Working load 1% elongation | 17 N/mm |
| MIN. DRUM DIAMETER | |||
| Flexing | 200mm | ||
| Back Flexing | N/A |
| JOIN TYPE | |||
| Skive Join |
| COEFFICIENT OF FRICTION | |||
| 0.5 |
| FOOD APPROVAL | |||
| No |
| CHARACTERISTICS | |||
| Much flexibility as the load carrying the core being centrally disposed allows the belt to flex readily around pulleys with small diameters. Large power of absorption. |
