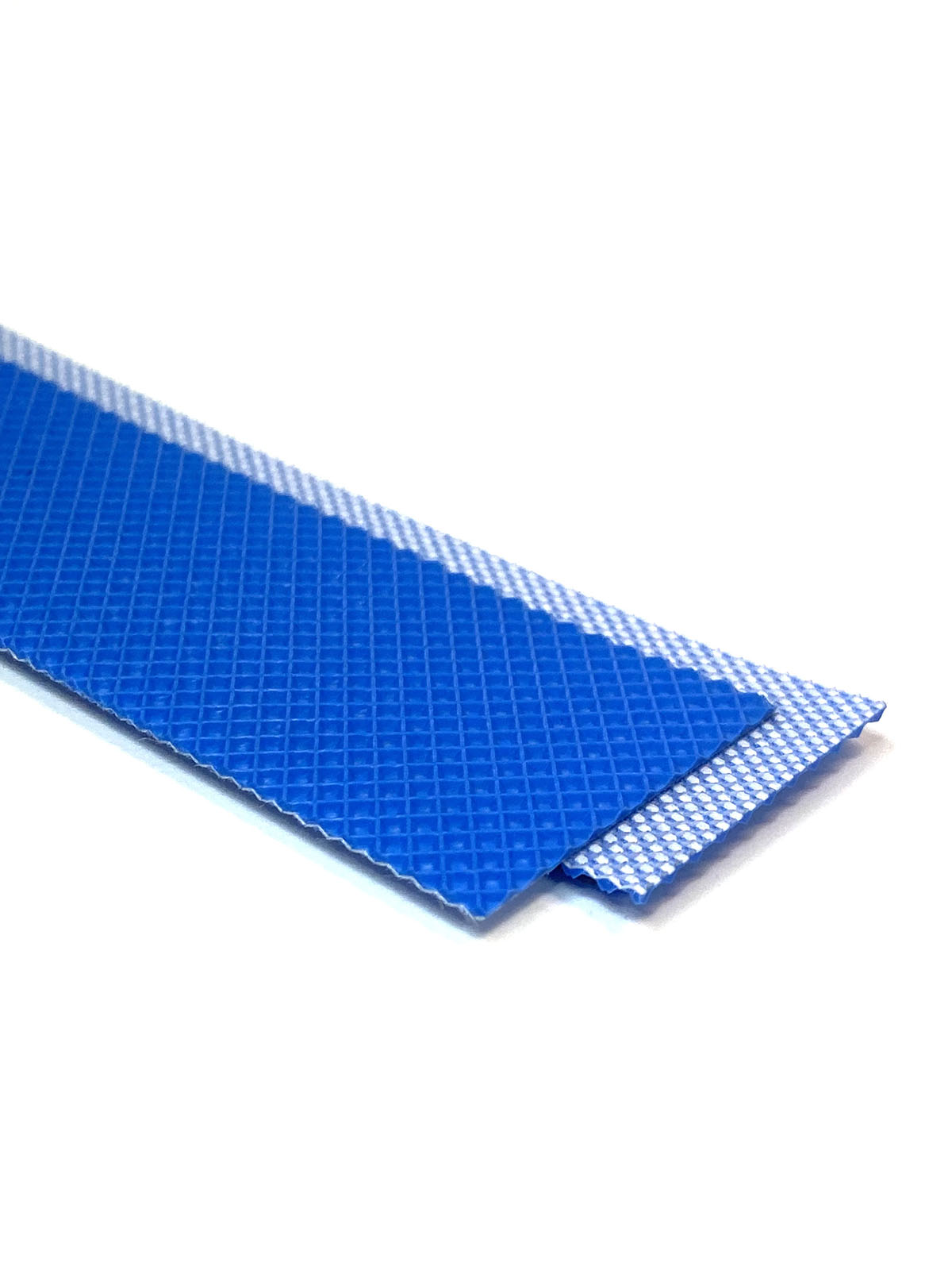

T08DF BLUE

STRUCTURE
Total thickness 1.0mm
No. of plies 1
Fabric Polyester
Weft Rigid
Weight 0.82kg/m2
Product Temp. -40°C to +90° C
Ambient Temp. -25°C to +60° C
1. Top cover
Top cover thickness 0.30mm
Material Polyurethane
Colour Blue
Surface Diamond Profile
Hardness 85 shore A
2. Bottom cover
Material Polyurethane
Colour White/Natural
Surface Polyester IMPGR
TENSIONS
Working load 1% elongation 5N/mm
Breaking load 8N/mm
MIN. DRUM DIAMETER
Flexing 10mm
Back Flexing 20mm
JOIN TYPE
G00SS, Finger splice
PROFILES APPLICATION
Profile on top Cover No
Profile on bottom cover No
Runner Sidewalls No
SPECIAL CHARACTERISTICS
Minerals, Oils & Grease Res. Yes
Flame retardant No
FDA Approved Yes
EU Approved Yes
ATEX Approved No
Antistatic No
SUPPORT SURFACE
Slider bed Yes
Rollers Yes
Troughed Application No
COEFFICIENT OF FRICTION
Steel slider bed 0.20



Category: Product ID: 4318

Description

Download the PDF here.
